Multicomponent flow in kidney disease with multi-b-value DWI: GitHub

Purpose: Examine the theory and potential clinical translation of multi-b-value DWI for multicomponent flow in kidney allografts and native kidneys with renal cell carcinoma.

Methods: Multi-b-value DWI (nine b-values; 0–800s/mm2) from a kidney cortex is simulated with anisotropic and non-Gaussian (i.e., anomalous) vas- cular, tubular, and tissue components and analyzed with a Bayesian biexpo- nential, least-squares triexponential, and spectral diffusion MRI. Comparison and application of biexponential, triexponential, and spectral diffusion flow proxies as the product of signal fraction f and diffusion coefficient D, fD for each component, is demonstrated in studies of kidney disease and compared to clinical measures.

Results: Simulated spectral diffusion fD demonstrated strong correlation to input fD of the simulated anisotropic and anomalous components. It agreed with both three-component diffusion and two-component diffusion. fD showed similar or improved agreement and correlation to input than the individual parameters f and D, and spectral diffusion showed similar or improved agreement than corresponding bi- and triexponential models. n kidney allografts, fD from spectral diffusion showed that allografts with higher fibrosis score had higher fD_tissue while allografts with impaired function had reduced fD_tubule. IVIM perfusion fraction f and fD* correlated with helper T-cells and T-cells as well as macrophages in renal clear cell carcinoma while kidney DWI predicted decline in function after nephrectomy of renal masses.

Conclusions: in kidney allografts, higher fD_tissue may capture the collagen and scarred fibrotic tissue by the greater amount of the restricted diffusion. Allografts with impaired function with reduced fD_tubule suggests detection of reduced tubular flow and filtration. DWI detected fibrosis in asymptomatic patients suggesting potential detection of earlier microstructural disease.

Multi-b-value DWI also demonstrated promise in immunophenotyping of renal cell carcinoma and potential detection of compensatory flow indicative of poor response to nephrectomy.

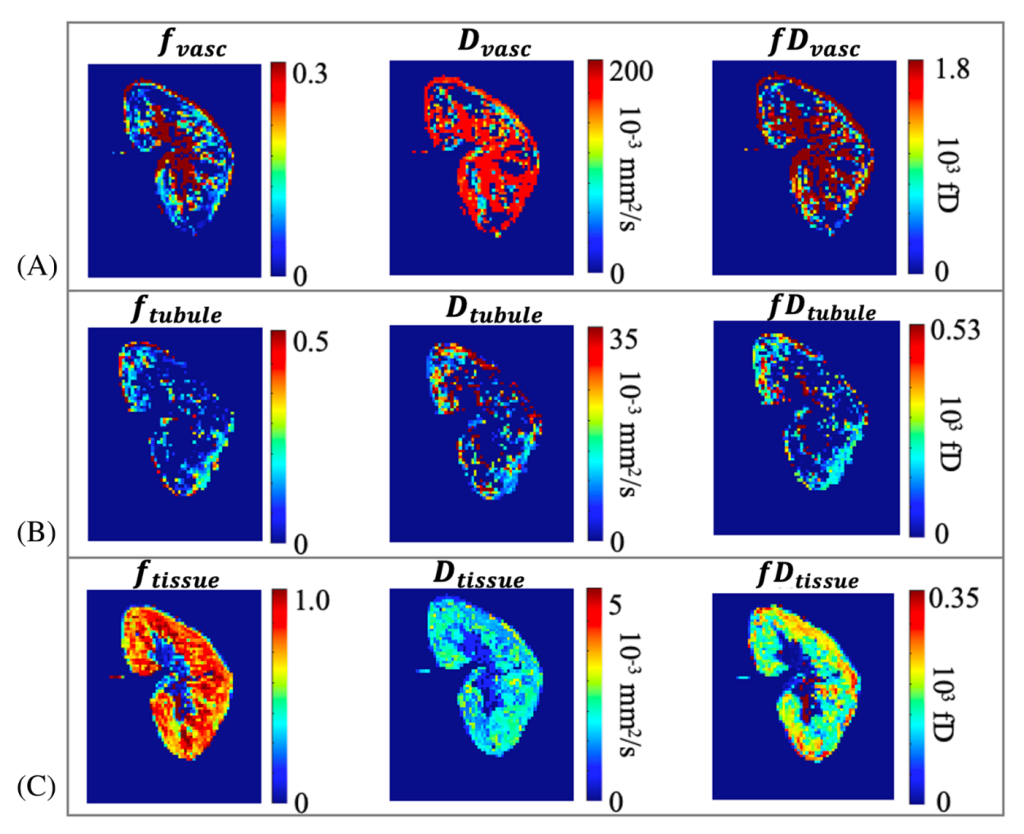

Example visualization of simulated curves, multicompartment diffusion maps of a healthy volunteer, and sensitivity to clinical measures.

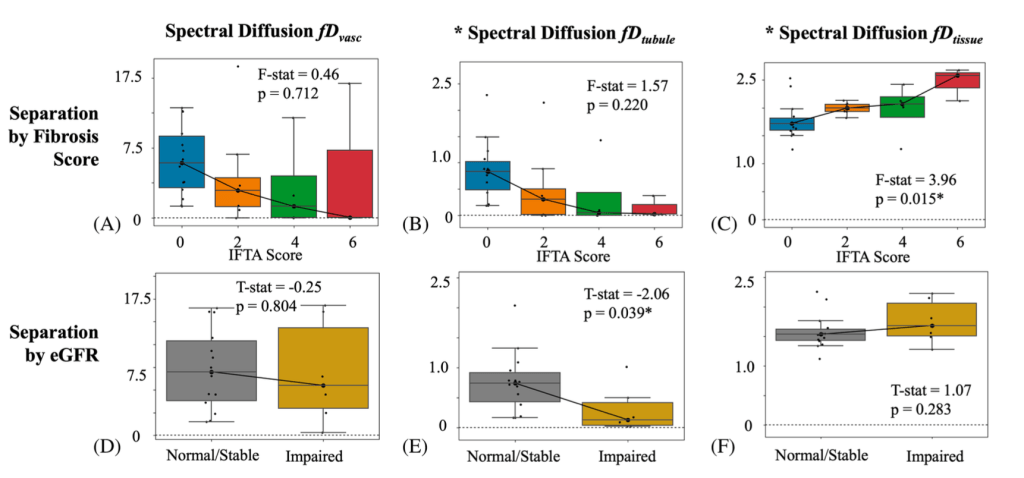

Figures from “Estimation of Multi-Component Flow in the Kidney with Multi-b-value Spectral Diffusion” Magnetic Resonance in Medicine 2025
